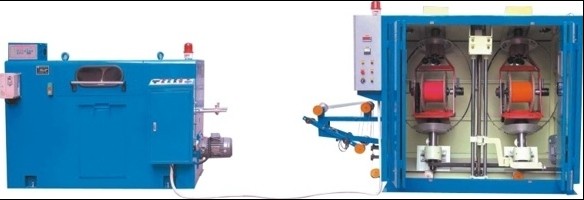

Auto Tension Pair Twisting Machine + Double Drum Back Twisting Machine

【Auto Tension Pair Twisting Machine + Double Drum Back Twisting Machine “Wire twister machine” Application】：

Suitable for the back-twisting and pair-twisting of CAT-5,5E, 6 net core wire and other wires.

【Auto Tension Pair Twisting Machine + Double Drum Back Twisting Machine “Wire twister machine” Technique Feature】：

1-500P Auto Tension Pair-Twisting Machine

1-1.Max back revolution speed: Max. 2200RPM, stepless adjustable.

1-2.Take-up shaft: 500mm, traverse row 280mm

1-3.Inlet wire diameter: Φ0.8-Φ1.5mm

1-4. Stranding pitch: 5.8mm～54.56mm, changeable gear type

1-5.Stranding direction: S/Z left and right, can be free choice

1-6. Tension control: magnetic powder tension, auto adjustment.

1-7. Lift of axial: deceleration motor electrical lift

1-8. Main motor: 5HP, 380V Speed-adjustable motor

1-9. Auto stop: auto stop when wire is broken, and auto stop when reach set meters.

2-Double Drum Back-Twisting Machine

2-1. Application: For the synchronous back-twisting of Net wire CAT-5，5E，CAT-6 core wire pair-twisting.

2-2. Type: Vertical, Double drum loading, Electrical Lift wire drum

2-3. Max back-revolution speed: Max.1000rpm/min

2-4. Back-twisting ratio: Max.50% stepless adjustable

2-5. Pay-off drum: Φ500（O.D）*Φ56（inner hole）*300（W）

2-6. Main Motor: 5HP, 4P AC Motor

2-7. Inlet motor power: 2 sets of 1HP, AC motor

2-8. Inlet wire tension: 200g-1500g stable adjustment.

• Technical data are subject to change without any prior notice.
