FTTX Fiber Cable Machine manufactured by HAGSIN GROUP - HAGSIN - Top Professional Fiber Optic Cable Machine Manufacturer
2017-06-10

FTTX Fiber Cable Machine manufactured by HAGSIN GROUP In China is mainly used for manufacturing of FTTX optical fiber cable. The material is can be LSZH, HFFR, etc.

FTTX Fiber Cable Machine Technical Parameters:

Size of FTTX Fiber cable

5.2*2.0mm, 3.2*2.0mm

Designed speed

200m/min

Coloring working  speed

150m/min

Number of optical fiber Pay-off

1-4 cores/1-4 pcs

Optical fiber reel size

φ236×φ25.4×108mm25km
 Φ265×Φ25.4×180mm50KM

Accuracy of length

≤0.2%

Additional loss

≤0.01dB/km (SM. fiber)

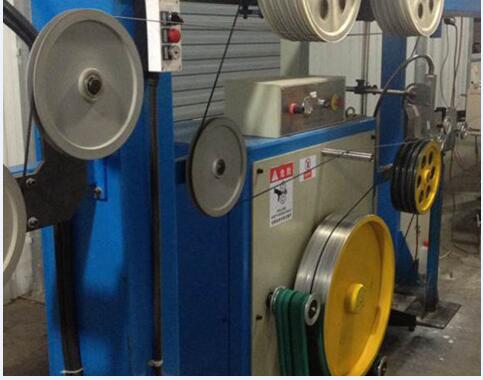

FTTX Fiber Cable Machine manufactured by HAGSIN GROUP in China
FTTX Fiber Cable Machine Technical Composition:

1.Steel wire pay-off

2.FRP(KFRP, AFRP) pay-off

3.Loose tube pay-off

4.Optical fiber pay-off

5.Extruding group

6.4M hot trough and Constant temperature water tank

7.12m Cooling trough

8.Blowing dryer

9.Diameter gauge

10.Printer

11.Dual-axis laser diameter gauge

12.Wheel Capstan

13.Accumulator

14.Take-up

15.Electric controlling system

if any question of FTTX fiber cable sheathing machine in china, be free to contact us business@hagsin.com. We will reply you soonest.
