PREMIUM FTTH FIBER CABLE SHEATHING LINE IN CHINA FROM HAGSIN GROUP



FTTH Cable Sheathing Machine Usage:


The extrusion line is used to produce single core fiber, double core indoor fiber cable, butterfly lead-in fiber optical cable, self-supporting butterfly lead-in optical fiber cable, FTTH optical fiber cable etc. The jacket material are PVC, LSZH and so on.

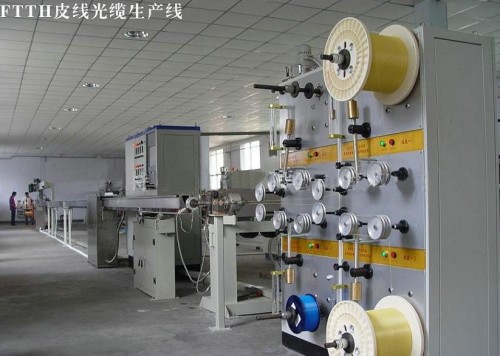

FTTH Terminal Optical Fiber Drop Cable Equipment - HAGSIN GROUP IN CHINA

FTTH Cable Sheathing Machine Main Machine Description:


1.  FRP ( or small size steel wire ) strenghten active pay-off stand.
2.  Aramid yarn pay-off rack ( optional part ).
3.  Tightly-buffered optical (bare) fiber active pay-off stand.
4.  Φ50 main extruder ( with feeding and drying device).
5.  Electric control cabinet.
6.  Thermostatic trough ( with thermostatic tank).
7.  Chilled-water trough.
8.  Air wiper dryer ( without air blower ).
9.  Single axis diameter gauge tester.
10. Black or white inkjet printer
11. Wheel pressure type capstan
12. Accumulating tension controlling stand.
13. Φ400mm X Φ630mm double bobbins take-up device.

FTTH Cable Sheathing Machine Main Machine Parameters:



Designed max. line speed

 150m/min

Production process max. line speed

120m/min

Tightly-buffered fiber pay-off

2/4 bobbins ( on request )

Size of bobbin for tightly-buffered fiber

Φ400mm X Φ56mm X 300mm( and standard fiber bobbin)

Optical fiber pay-off tension

0.4N-1.2N ( adjustment )

 Take-up tension

2-15N ( adjustable )

 Take-up bobbin

PN400-PN630

Add loss

0.02 dn/km ( Only for the single mold core fiber cable)


If any question or inquiry of FTTH Fiber Cable Sheathing Line, be free to contact us business@hagsin.com, we will reply you soonest.
