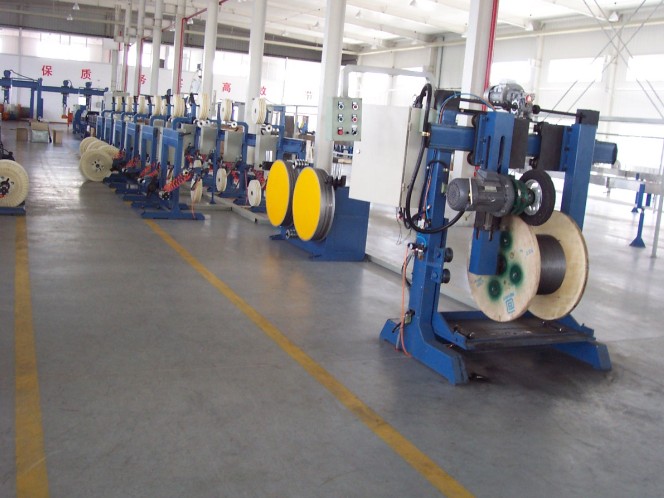

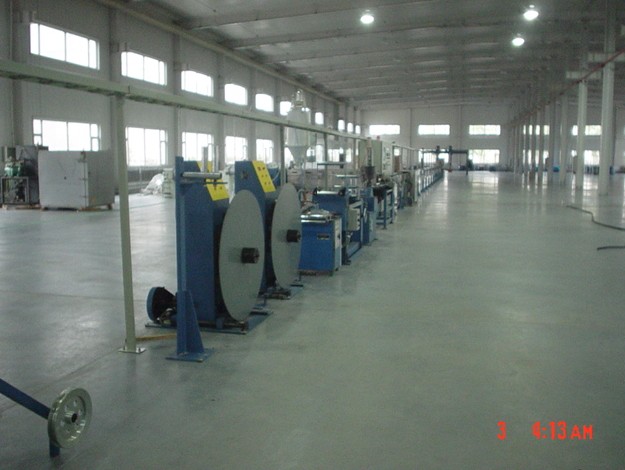

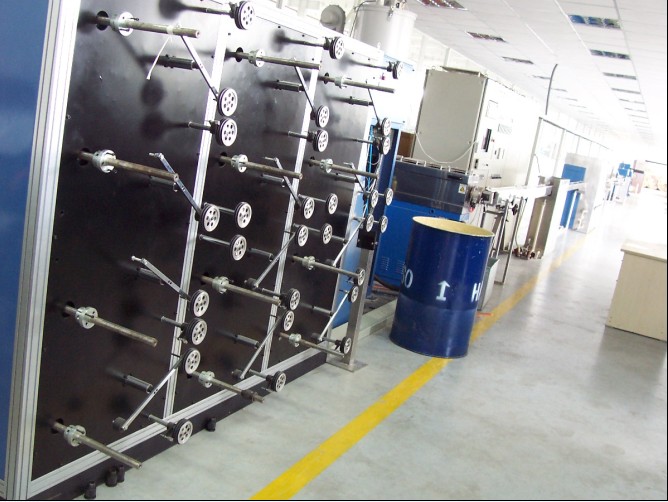

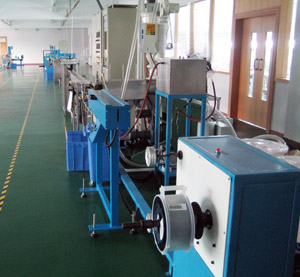

φ90 Optical Fiber Cable Sheathing Production Line

【φ90 Optical Fiber Cable Sheathing Production Line “Optical Cable Sheathing Equipment” Application】：

φ90 Optical Fiber cables production line is used to sheath the inside and outside of the optical cables. The extrusion material include PE, PVC and Nylon 12, etc. It is used mainly for:

A．Sheath the layer twisted cables;

B．Steel wires armoring the cables;

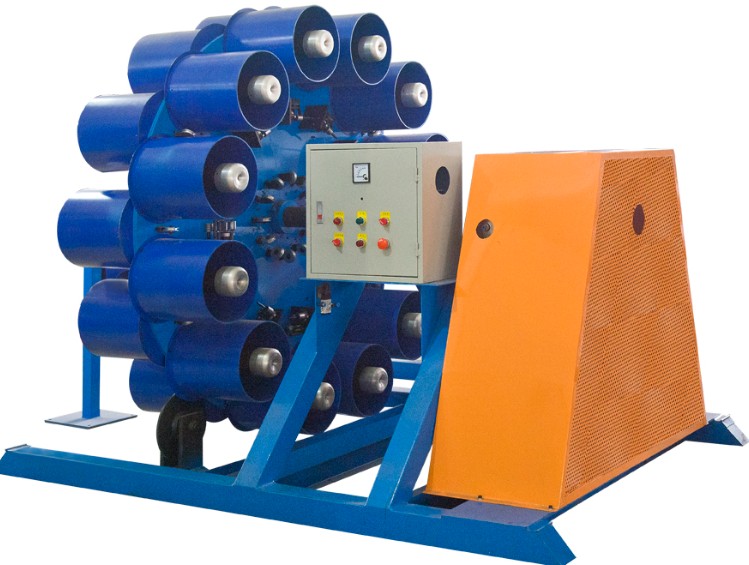

C．Production of ADSS optical fiber cable (if the aramid fiber yarn payoff device is an option)

【φ90 Optical Cable Sheathing Production Line “Optical Cable Sheathing Equipment” Technical Parameters】：

1. Outer diameter of cable core：φ3.0—φ26.0mm

2. Extrusion outer diameter：φ5.0—φ30.0mm

3. Production speed：Design speed 80m/min

4. Central height of device： 1000mm

5. Extrusion amount： ≤200kg/min

6. Caterpillar traction force：800kg

7. Capacity： ~110KW

8. Installation length： ~66m

9. Pay off bobbin specification： PN800—PN2000

10. Take up bobbin specification：PN1000—PN2000
11. Sheathing outer diameter range：≤ Outer diameter ±2%

• Technical data are subject to change without any prior notice.
